TOSUN Hardware & Software for SIL/HIL Testing
ANCIT is the authorized distributor of TOSUN automotive interface hardware in India. TOSUN provides high-performance, cost-effective CAN/CAN FD/LIN/FlexRay/Ethernet interface solutions designed for automotive ECU development, diagnostics, and SIL/HIL (Software-in-the-Loop / Hardware-in-the-Loop) testing environments.
Whether you're developing ECU software, performing vehicle diagnostics, or building comprehensive test benches, TOSUN hardware delivers reliable, high-speed communication with full protocol support and seamless integration with industry-standard tools.
Why Choose TOSUN?
- Cost-Effective — Premium quality at competitive pricing
- High Performance — Up to 5 Mbps CAN FD support
- Wide Compatibility — Works with CANoe, INCA, CANalyzer & more
- Local Support — ANCIT provides full technical support in India
SIL/HIL Testing Solutions
Software-in-the-Loop (SIL)
TOSUN interfaces enable seamless SIL testing by connecting virtual ECU models with real communication buses.
- Early-stage ECU software validation
- Virtual bus simulation with real protocols
- TSMaster scripting & automation support
- Automated test case execution
Hardware-in-the-Loop (HIL)
Build production-grade HIL test benches with TOSUN's reliable, high-speed interfaces for real ECU testing.
- Real-time ECU stimulation & response
- Multi-channel CAN/LIN bus monitoring
- Fault injection & edge-case testing
- Production line end-of-line testing

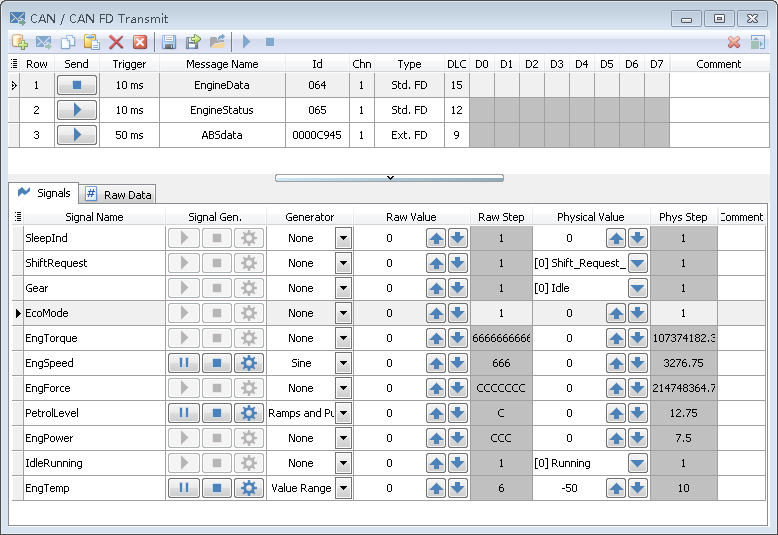

TSMaster Software Suite
TSMaster — Professional Bus Analysis & Simulation Software
Free with Every TOSUN Device
TSMaster is a powerful, free software suite included with all TOSUN hardware. It provides comprehensive tools for automotive bus development and testing.
- CAN/CAN FD/LIN/FlexRay bus monitoring & analysis
- DBC/LDF database import & signal decoding
- UDS/OBD-II diagnostics & ECU flashing
- Bus simulation & message transmission
- C/Python scripting for automation
- Data logging & graphical visualization
Available Hardware Interfaces
TC1001 - 1-Way CAN to USB Interface
TC1001 is a portable and easy-to-install high-speed CAN bus interface module with a maximum rate of 1M bps, which is connected to a PC using a high-speed USB2.0 interface and is designed for Windows system with excellent system compatibility.
Features
- Time stamp resolution 1 μs for advanced requirements
- Portable design with mounting holes for easy integration
- High-speed USB2.0 interface, Windows driver-free design
- CAN channel DC2500V isolation
- Support DBC, LDF, ASC, BLF files
- Support UDS diagnostic and CCP calibration
- All paid licenses of TSMaster can be loaded
Services Available
- PC-based software customization
- Device communication interface integration
- BootLoader & CCP/XCP protocol customization

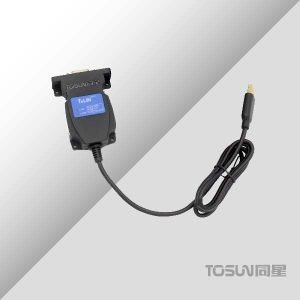

TL1001 - 1-Way LIN to USB Interface
TL1001 is a portable and easy-to-install LIN bus interface module from TOSUN, with a rate of 0~20Kbps. The product uses a high-speed USB2.0 interface to connect to a PC, and the drive-free design of Windows system makes the device have excellent system compatibility.
Features
- Unique free send mode to reduce LIN bus debugging threshold
- Time stamp resolution 1 μs for advanced requirements
- Portable design, easy to integrate into equipment
- Support LIN, LDF files, arxml files
- Built-in script editing, virtual & semi-physical simulation
- Support BLF format recording and offline/online playback
- LIN bus based UDS diagnostics supported
Services Available
- PC-based software customization
- Device communication interface integration
- BootLoader & CCP/XCP protocol customization
TC1011 - 1-Way CAN FD to USB Interface
TC1011 is a single-channel CAN (FD) bus interface device launched by TOSUN, CANFD bus rate supports up to 8M bps, the product adopts high-speed USB2.0 interface to connect with PC, Windows system drive-free design makes the device has excellent system compatibility.
Features
- CAN FD support up to 8M bps data rate
- Time stamp resolution 1 μs for advanced requirements
- Portable design with mounting holes
- Support UDS diagnosis and CCP/XCP calibration
- Auto grade design, support DBC, LDF, ASC, BLF files
- Support BLF format recording and offline/online playback
- All paid licenses of TSMaster can be loaded
Services Available
- PC-based software customization
- Device communication interface integration
- BootLoader & CCP/XCP protocol customization

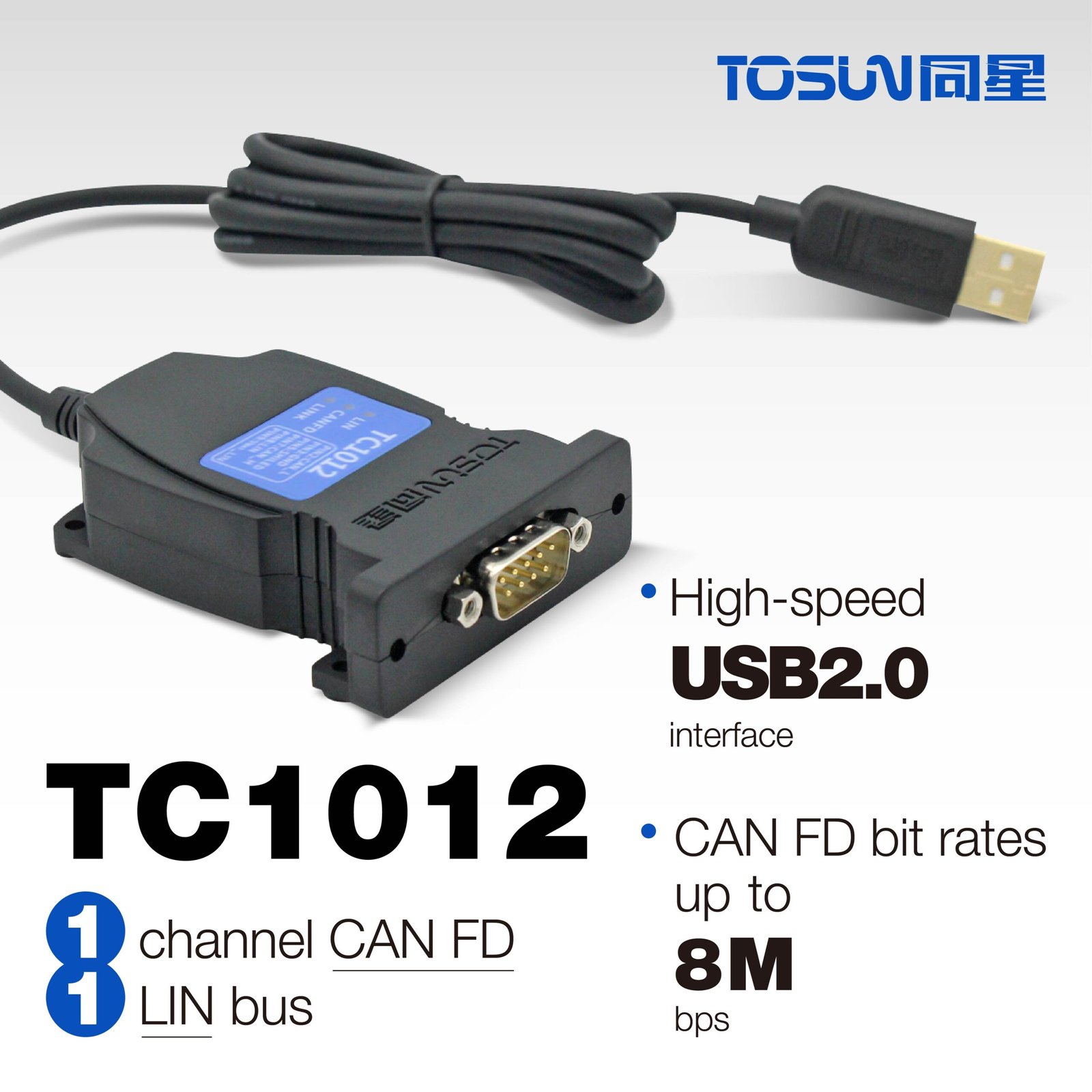

TC1012 - 1-Way CAN FD + 1-Way LIN to USB Interface
TC1012 is a single-channel CAN (FD) / single-channel LIN bus interface device launched by TOSUN, CANFD bus rate supports up to 8M bps, LIN bus device support rate 0~20Kbps, the product uses high-speed USB2.0 interface and PC connection, Windows system drive-free design makes the device has excellent system compatibility.
Features
- CAN FD up to 8M bps + LIN up to 20Kbps
- Time stamp resolution 1 μs for advanced requirements
- Portable design with mounting holes
- Support UDS diagnosis and CCP/XCP calibration
- Auto grade design, support DBC, LDF, ASC, BLF files
- Support BLF format recording and offline/online playback
- All paid licenses of TSMaster can be loaded
Services Available
- PC-based software customization
- Device communication interface integration
- BootLoader & CCP/XCP protocol customization
TC1016 - 4-Way CAN FD + 2-Way LIN to USB Interface HIL Ready
TC1016 is a multi-channel CAN (FD) and LIN bus interface device launched by TOSUN, CANFD bus rate up to 8M bps, LIN support rate 0~20K bps, the product uses high-speed USB2.0 interface and PC connection, Windows system drive-free design makes the device has excellent system compatibility. Ideal for HIL testing setups.
Features
- 4x CAN FD channels (up to 8M bps each)
- 2x LIN channels (up to 20Kbps each)
- Time stamp resolution 1 μs for advanced requirements
- Portable design with mounting holes
- Support UDS diagnosis and CCP/XCP calibration
- Auto grade design, support DBC, LDF, ASC, BLF files
- Perfect for HIL test bench integration
- All paid licenses of TSMaster can be loaded
Services Available
- PC-based software customization
- Device communication interface integration
- BootLoader & CCP/XCP protocol customization
